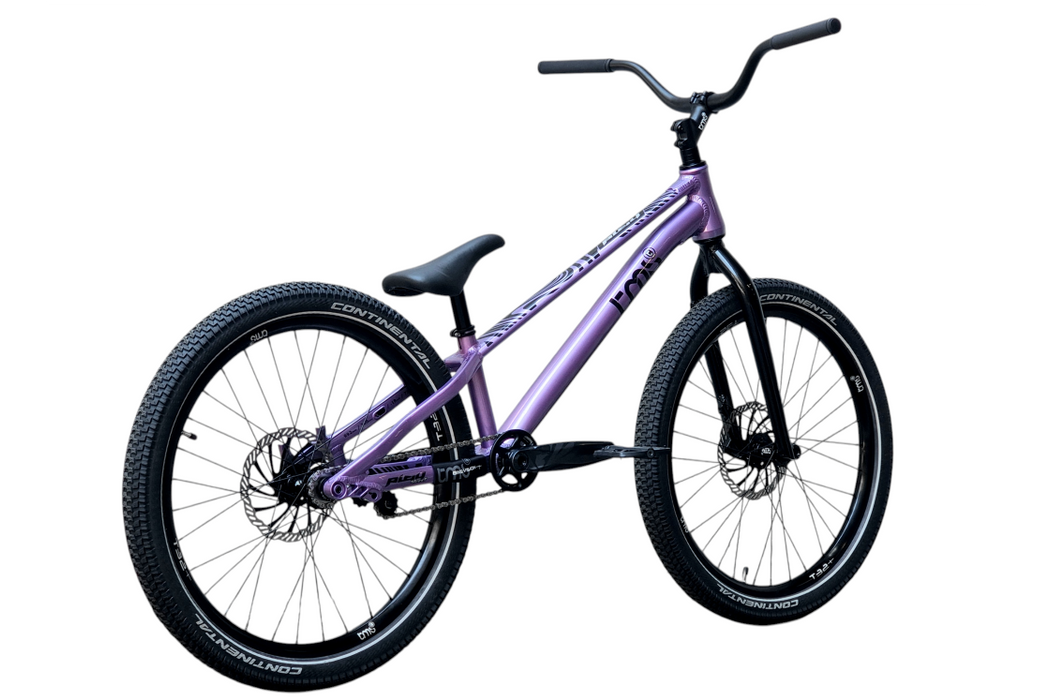

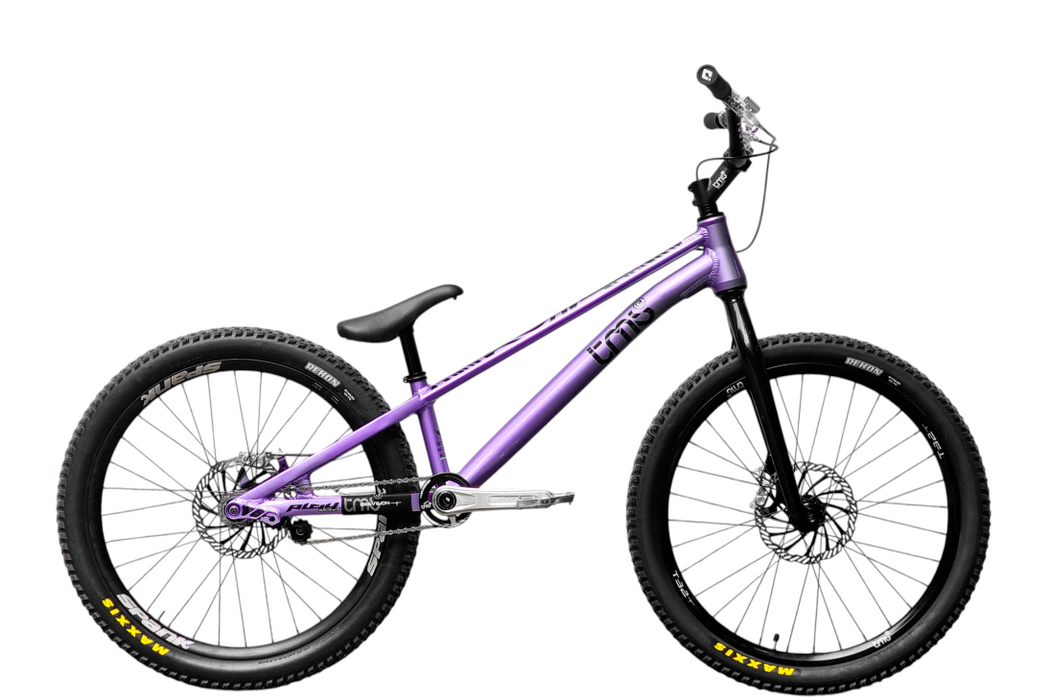

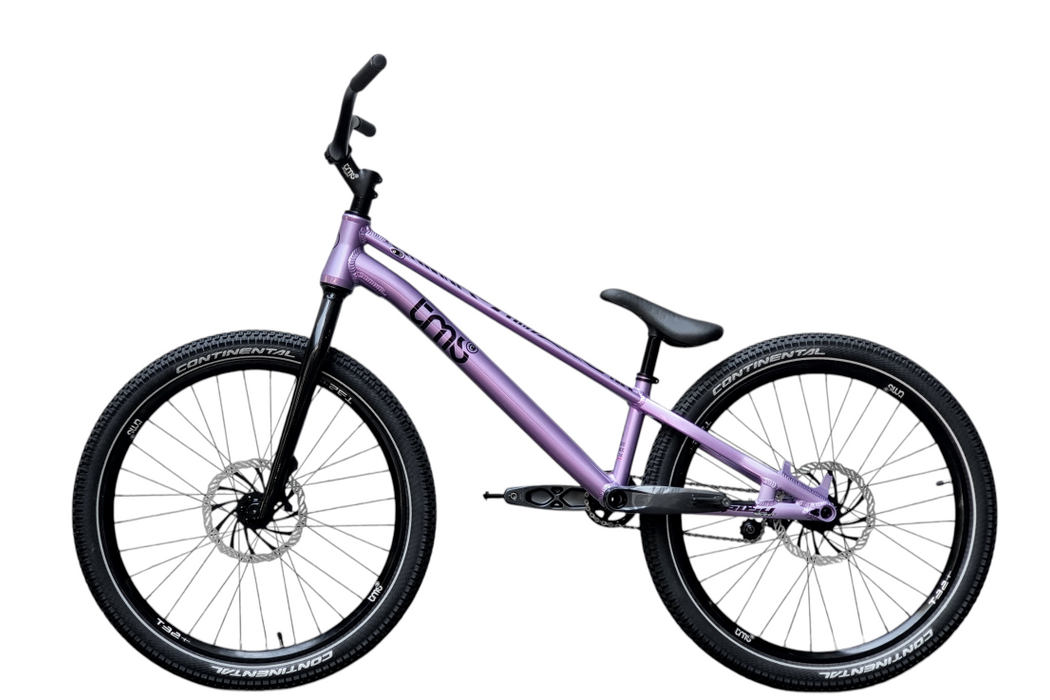

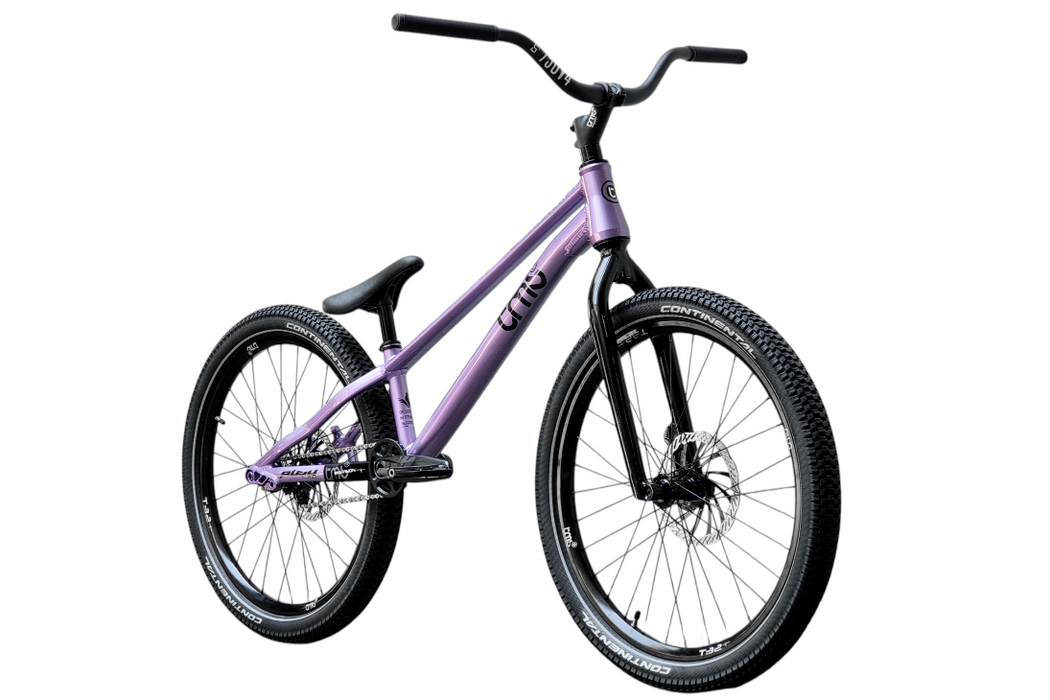

TMS Street Trial 24" Play Purple
TMS is pleased to present its latest creation, STREET TRIAL: The Play Street 24"
The French brand of Thibaut Marriaux (former World Champion of mountain bike trials) benefits from a great experience: 12 years of development with his trial and street trial team.
***-THIS BUILD IS THE MAGURA MT7 WITH CONTINENTAL TIRES AND SRAM GX
PHOTOS ARE STOCK IMAGES AND DON'T HAVE THE SAME PARTS AS THE IN STOCK BIKE
NEW PRODUCTS & INNOVATIONS:
The TMS PLAY made its debut with our new, incredibly playful and versatile 27.5" hardtail enduro bike. This bike was such a success that it seemed logical to continue with this sleek Polish frame design, but this time in a street version with a Play Street 24" and 26".
Thanks to the best of TMS's expertise, the alliance of technology and design is called Le Play Street 24".
From the first glance, the Play captivates with its style.
.
- Hydroformed upper and lower tubes providing a rigidity increase of approximately 15 to 20%
- 1 1/5" tapered head sets provide increased rigidity and strength, particularly for 2-step techniques.
- Geometry Compared to its predecessor, we have completely revised the geometry with a lower bottom bracket (+18) for more stability on "street" tricks while maintaining good trial behavior, shorter rear chainstays for more responsiveness on rotations as well as a longer wheelbase allowing it to adapt more widely to the height of each rider!
- CNC machined wheel mounting tabs for better wheel retention in its housing and a significant increase in rigidity.
- Integrated clevis tensioner in the frame which allows a fixed position of the wheel and constant chain tension: resulting in constant braking.
- PLAY Street Maori Type screen print with a very attractive effect on a purple frame with a glossy varnish.
New Geometry:
- Total wheelbase: 992mm NEW
- Rear stays: 360mm NEW
- Case height: +18mm NEW
- Steering angle: 73.5° NEW
- Weight: 1.9kg (without tensioners)
Equipment:
Fork : (depending on the declensions)
- Cromo fork: (With my Shimano MT200 brakes)
- 6063 Steel
- Pivot: Right 1*1/8"
- Black color + White Flint emblem
- Postmount 180mm disc bracket
- Through axle: 15x100mm screwed on each side
- Aluminum fork (with all other brake mounts)
- Aluminum Alloy
- Color: Black
- Pivot: Tapered 1*5" - 1*1/8" 220mm
- Length: 400mm
- Offset: 30mm
- Postmount 180mm disc bracket
- CNC threaded stem cap
.
Cockpit:
- Headset: TMS 1-1/5" Tapered
- Stem: TMS 80x40° Ø31.8mm
- Handlebar: TMS V4 750mm Aluminum Ø31.8mm
- Steering wheel cover: Internal cable routing
- Handles: Extra long, thin black rubber
.
Braking (depending on the variant) :
- Front/Rear Brakes:
Magura MT7 HC3 (4 Pistons + Adjustable Aluminum Lever)
.
- Discs:
TMS 6-spoke black 180mm
.
Transmission (depending on the variant) :
- TMS ISIS transmission:
- Crankset: TMS ISIS 170mm Black
- Bottom bracket: TMS ISIS threaded
- Freewheel protection: TMS screen printing matching the crankset.
- Front Fixed Sprocket: TMS 18 teeth 3"3/32.
- Rear sprocket: Splined 13 teeth
- Tightening Nut: TMS
- Pedals: Black Composite
- Chain: KMC Z610
.
- Sram GX drivetrain: NEW
- Crankset: Sram GX 170mm Thru Axle
- Bottom bracket: Sram DUB BSA
- Crankset protection: Inspired Sram 3-bolt
- Sprocket: Inspired 22T 3/32
- Rear sprocket: Splined 13 teeth
- Tightening Nut: TMS
- Pedals: Black Composite
- Chain: KMC Z610
.
Wheels (depending on the model) :
- Front hubs:
> TMS Disc street Black 32 Bearings Ø15mm.
.
- Rear hubs:
TMS 135mm rear freewheel, 135 engagement point, sealed annular bearing
.
- Front rim: TMS 24” street, double wall, black
- Rear rim: TMS 24” street, double wall, black
.
Pneumatic (depending on the variant):
> Continental Air King Danny Mackaskill 24"x2.4
.
Seating:
- Saddle: Combo TMS BIKEVISION Black NEW
- Seat clamp: Allen key Ø31.8mm
.
Weight (depending on the variant) :
- 9.8kg to 10.4kg
