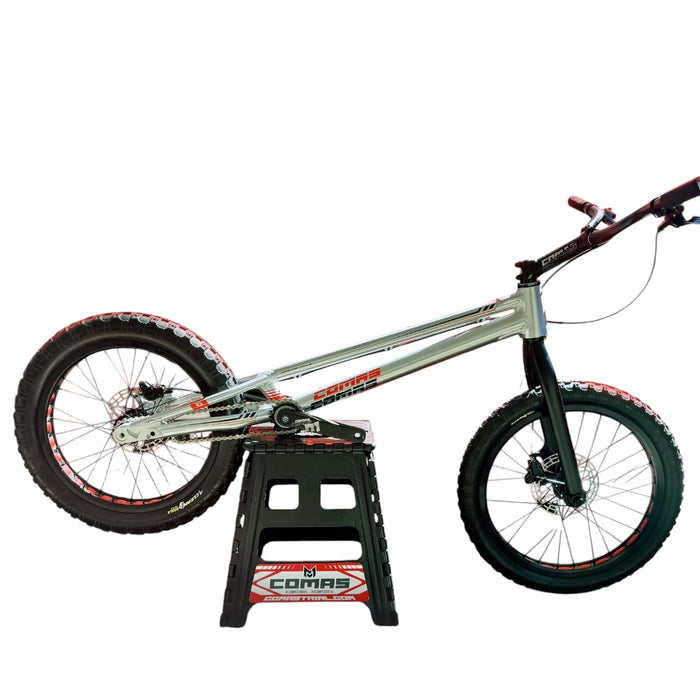

Comas R3 Pro 20"

R3 PRO MODEL - 1008MM / 970MM
FRAME:  20" AL6061-T6. HT 1.5" CNC dropout. Post-mount. 12mm thru-axle
FORK:  20" AL6061-T6. CNC dropout. Post-mount.
BASHPLATE:  Ultralight CNC 7075-T6
STEM:  Forged 3D. One piece. L150/130x20°
SPACERS:  5mm. Alloy. CNC
HEADSET:  Semi-integrated 1-1/8" to 1.5", Alloy cups
GRIPS:  Foam. Medium density. 2/4mm.
HANDLEBAR:  7075-T6, 2 THICKNESS. L720mm, 31.8mm, Up 7°, Back 9°, H115mm
BRAKES:  Shimano. Hydraulic. Postmount.
ROTOR:  160mm Stainless Steel. Special compound & Roughness
WHEELS:  Del 20"x28H W100 Disc / Trs 19"x32H W116 Disc.
INNER TUBE:  Ultralight, 20 x1.75, Th: 0,8mm
BB PARTS:  ISIS type. 1.37x24t, W68mm, L123mm
CRANKSET:  Forged alloy. ISIS type. L160mm, Off33mm
FREEWHEEL:  18Tx108.9 W17mm
CHAIN:  Single-speed 1/2"x3/32"
TRACKCOG:  Fixed track cog. CNC. AL7075 T6, W12mm, 1.37"x24T
TENSIONER:  Double 10T pulley. CNC. Ceramic bearings.
REAR AXLE:  Thru axle M12x1.5p. AL6061-T6. L144mm
TIRES:  Trial 20"x2.00 / 19"x2.60
PEDALS:  Trial Cage, 9/16", Alloy


GEOMETRY 1008
WB: 1008
RC: 350
BB: 85
OFF: 40
HT: 370
WD: 116

GEOMETRY 970
WB: 970
RC: 350
BB: 85 OFF: 40
HT: 370
WD: 116
