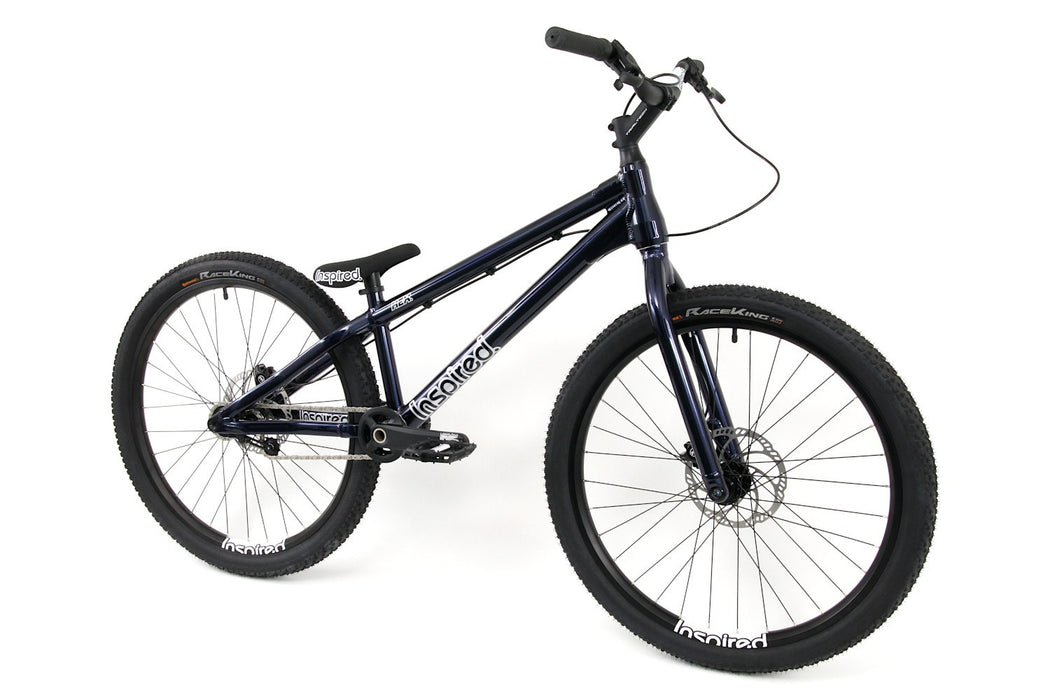

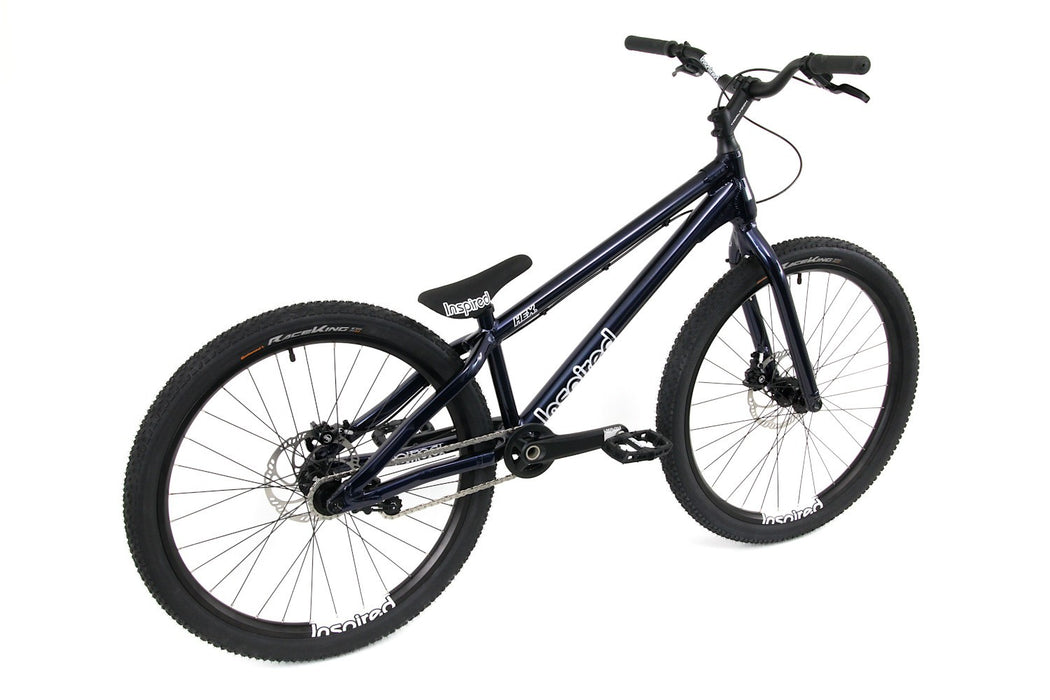

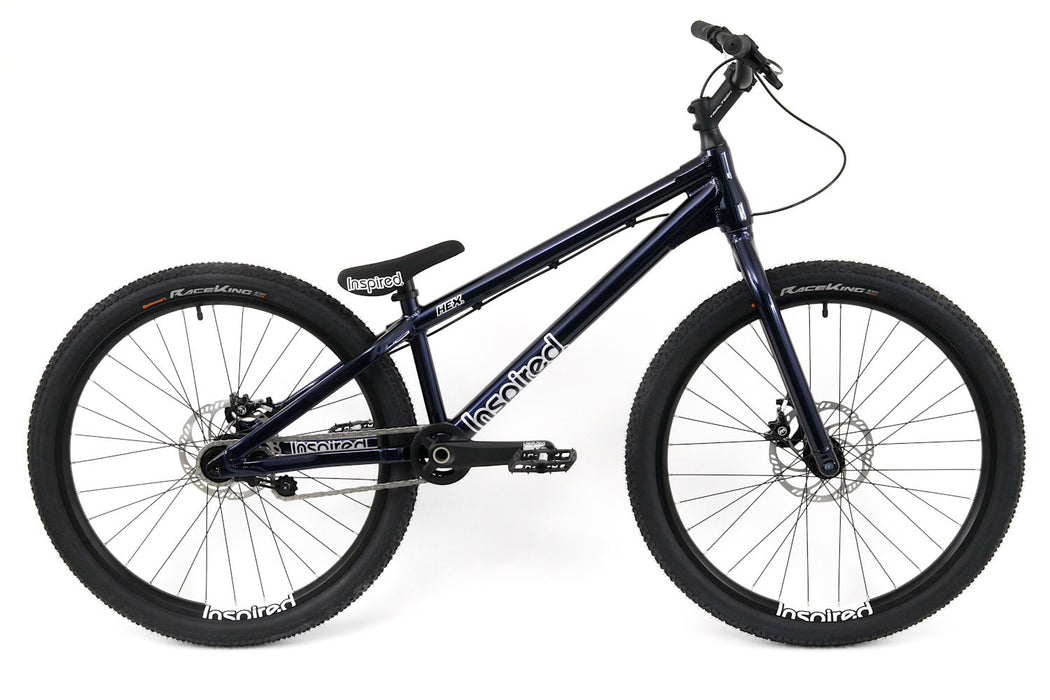

Inspired Hex Pro 26" Gloss Metallic Dark Blue

$100 Flat Rate shipping to lower 48 only, call for shipping quote outside the lower 48

The Hex design and geometry allows riders to benefit from the compact and maneuverable geometry of our famous 24" frames, but with the associated benefits that come with 26" wheels (such as increased stability and familiarity for traditional MTB riders).

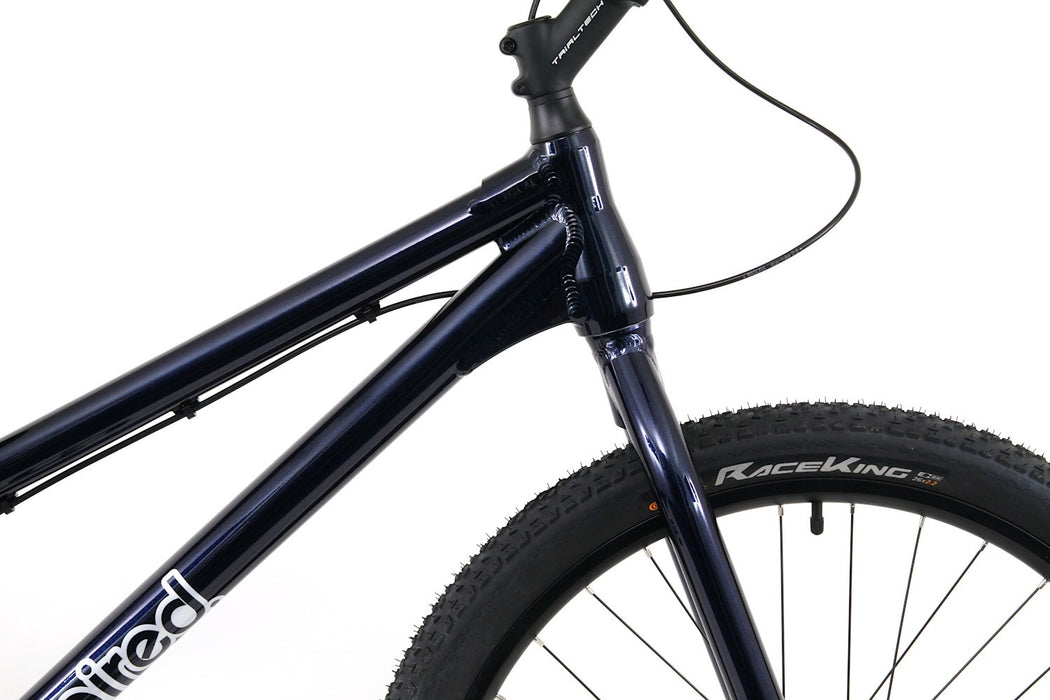

The front of the frame features an upgraded butted tubeset to help increase strength even further and is complemented by using external top and down tube gussets. An all-new integrated tapered head tube allows for increased weld contact area with the down tube to increase durability further.

The Hex features a hollow bottom bracket and chainstay yoke which has been designed to offer excellent clearance for both the tyre and the chainring. The custom design increases stiffness and strength at this important area and the internal CNC machining means the weight has been reduced significantly. A 12mm bolt through axle, which screws into a custom tapered insert within the frame dropout, ensures that everything stays in place no matter what you throw at it.

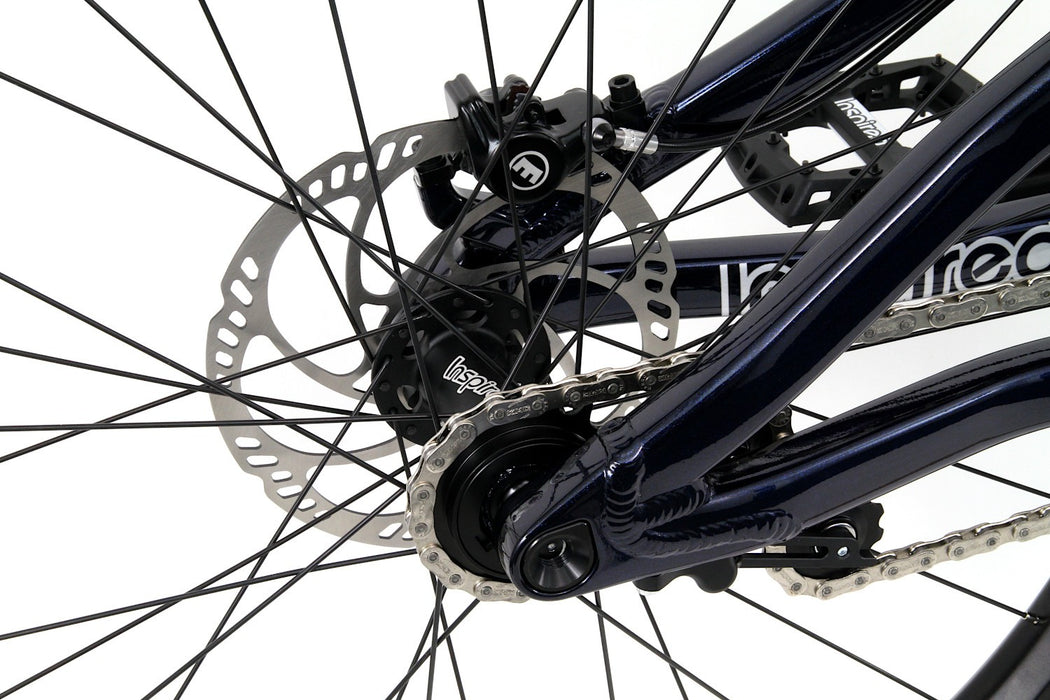

The frame and fork feature reinforced Post Mount disc brake mounts (maximum rotor size 185mm) thereby removing the need for additional brake caliper adaptors. The rear of the bike features exclusive-design seat and chainstay tubing to improve crank and heel clearance. The frame disc mount is a single, hollow component formed with the dropout to ensure perfect alignment and maximum strength. The custom shaped dropouts and integrated tensioner mount maintain the clean and stylish look of the frame.

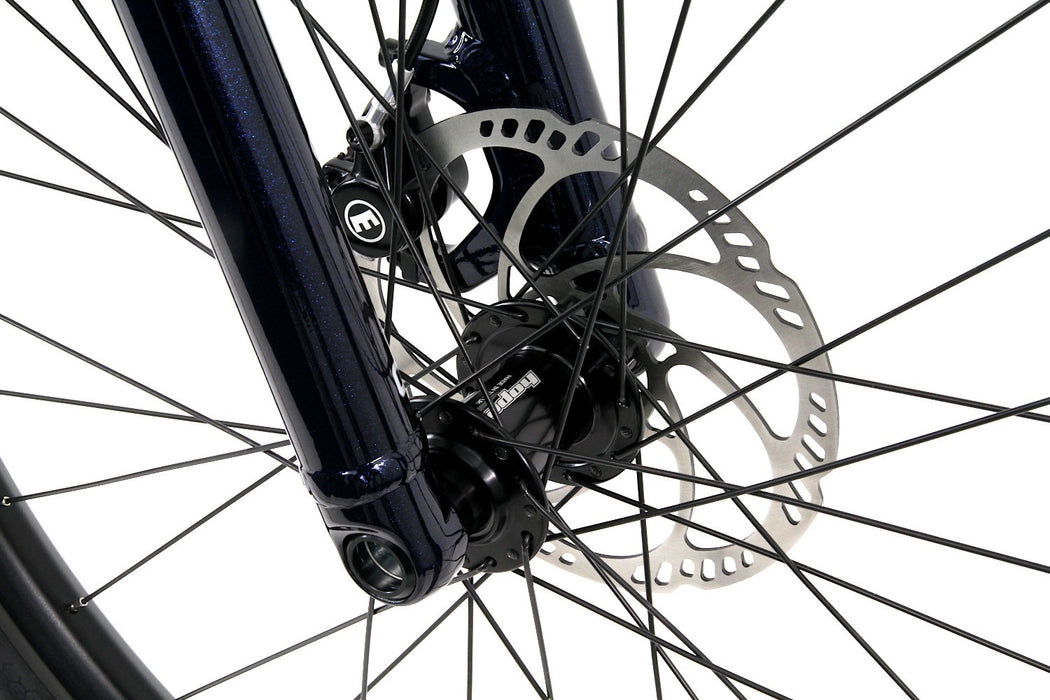

The Hex fork features a tapered steerer and innovative crown construction for improved durability and reduced weight. The 20mm through-axle keeps things firmly in place and adds plenty of stiffness while the countersunk design helps to keep things low profile and out of the way. A unique and innovative captive bolt and cover system on the fork allows the axle to be removed whilst those parts remain in place in the dropout ready for refitting. Furthermore, increased tyre clearance at the fork crown area gives better clearance when routing the front brake hose through the steerer tube (via the custom screw-in top cap).

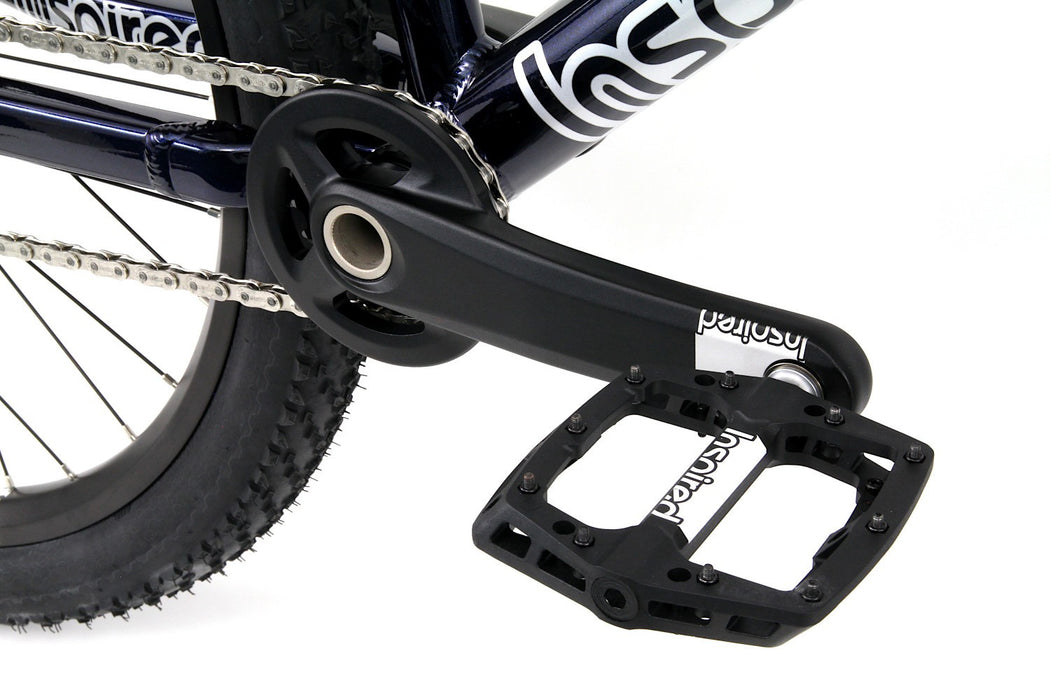

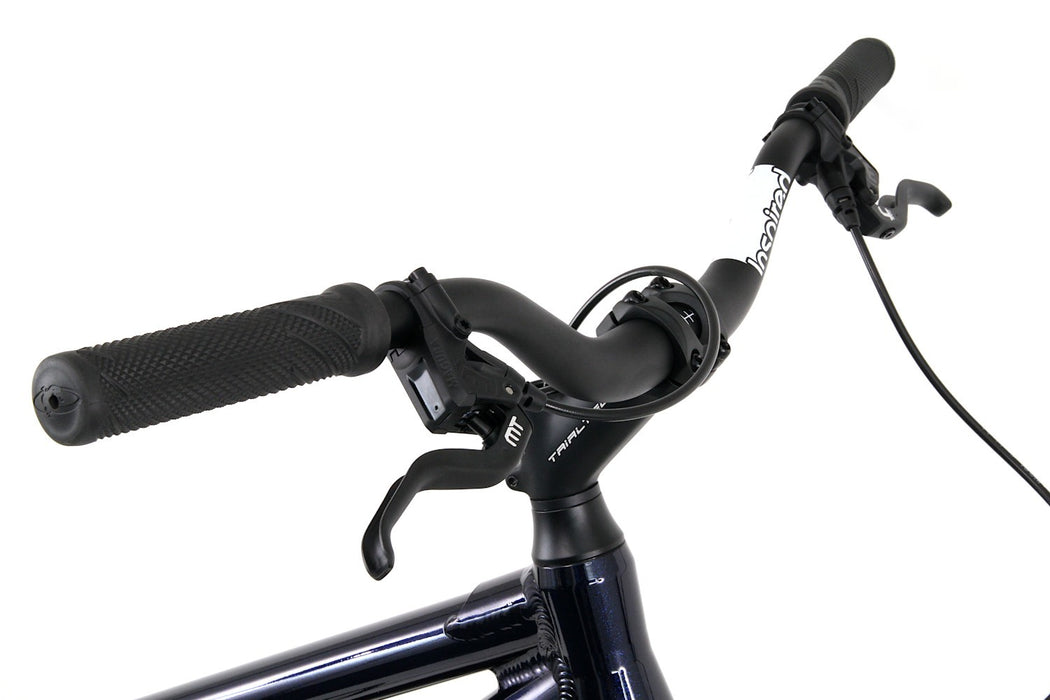

The Hex Pro 26" complete bike is built with a range of top quality products. Up front is an Inspired Pro riser bar with Trialtech stem and FSA taper headset. Custom Inspired Pro crankset with integrated bashring, KMC chain, Inspired Pro composite platform pedals and an Inspired Team sprung chain tensioner provide a tough and dependable drive set. Available as standard with Magura MT4 brakes, braking is powerful but easily controlled. The wheels use Inspired Pro V2 rims built on to a Hope Pro 5 front hub and Inspired Pro rear hub with Continental tyres.

Available with Magura MT7 HC3

Available in Gloss Metallic Dark Blue only.

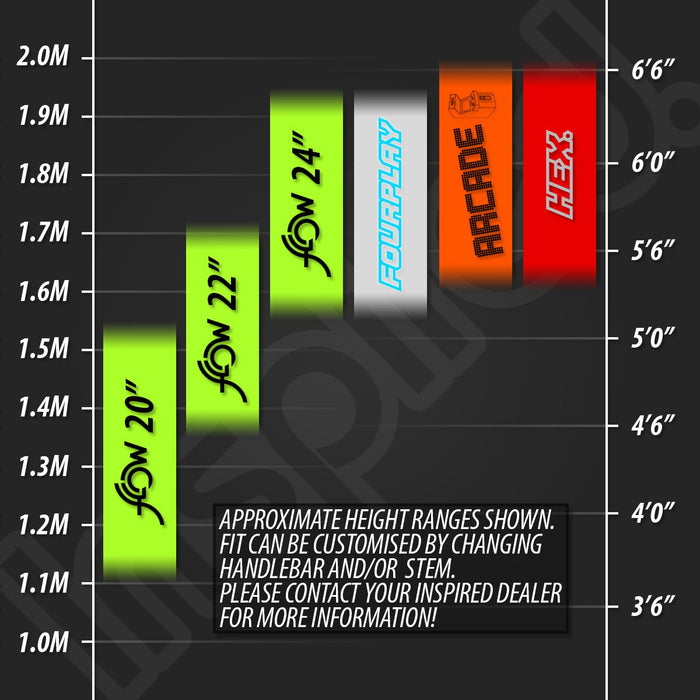

Suggested height: 1.60m/5ft 3in - 2.00m/6ft 6in

Complete Hex Pro 26" bike specification.

Frame and Forks
- Frame: Inspired Hex 26", 12mm bolt through axle, Gloss Metallic Dark Blue
- Forks: Inspired Hex Pro, Taper 1.5" steerer, 15mm bolt through axle, Gloss Metallic Dark Blue

Wheels
- Front Hub: Inspired Disc V2, 15mm bolt through axle, 32h, 100mm wide, Satin Black
- Rear Hub: Inspired Disc V2, 12mm bolt through axle, 32h, 135mm wide, Satin Black
- Chain Tensioner: Inspired Team Sprung, Black
- Rims: Inspired Pro V2 Disc, 26", Satin Black
- Spokes: Stainless PG, Black
- Rim Tape: Trialtech, Black
- Tyres: Maxxis Holy Roller 26 x 2.4"

Brakes
- Brake set: Magura MT4 180mm Disc, Black or Hope Tech 3 - Trial Zone 180mm Disc, Black (Optional Extra), Magura MT7, HC3 Blade, 180mm Disc, Black (Optional Extra) or Hope Tech 4 - Trial Zone 180mm Disc, Black (Optional Extra)

Drivetrain
- Cranks: Inspired Pro Integrated 24mm, 175mm, Satin Black
- Front Sprocket: 22T Inspired Pro Integrated, Black
- Chain: KMC Z1eHX-N
- Freewheel: Trialtech Sport 18T, 72 engagement
- Pedals: Inspired Pro Composite Sealed Bearing Platform, Black
- Bottom Bracket: Inspired Pro 24mm, Black
- Bashring: Inspired Pro Integrated, Satin Black

Seating
- Saddle: Inspired Integrated Padded, Black
- Seatpost: Integrated Alloy
- Seat Clamp: Inspired, 31.8mm, Black

Steering
- Headset: FSA, 1-1/8" Integrated Upper, 1.5" Integrated Lower, Satin Black
- Stem: Trialtech Sport, 90mm x 35°, Satin Black
- Grips: Lizard Skins 'MacAskill' Rubber Grips, Black
- Handlebars: Inspired Pro Riser, Satin Black

Geometry
- Wheelbase: 1023mm
- Chainstay: 380mm
- BB Height: +20mm
- Head Angle: 73.5˚

Weight
- 11.42kg (including pedals and Magura MT4 brakes)
