Inspired Flow 24"
$100 Flat Rate shipping to lower 48 only, call for shipping quote outside the lower 48
Complete Flow 24" bike specification.
Frame and Forks
- Frame: Inspired Flow 24" 2025, Gloss Grey
- Forks: Inspired Flow 24", Steel, Gloss Grey

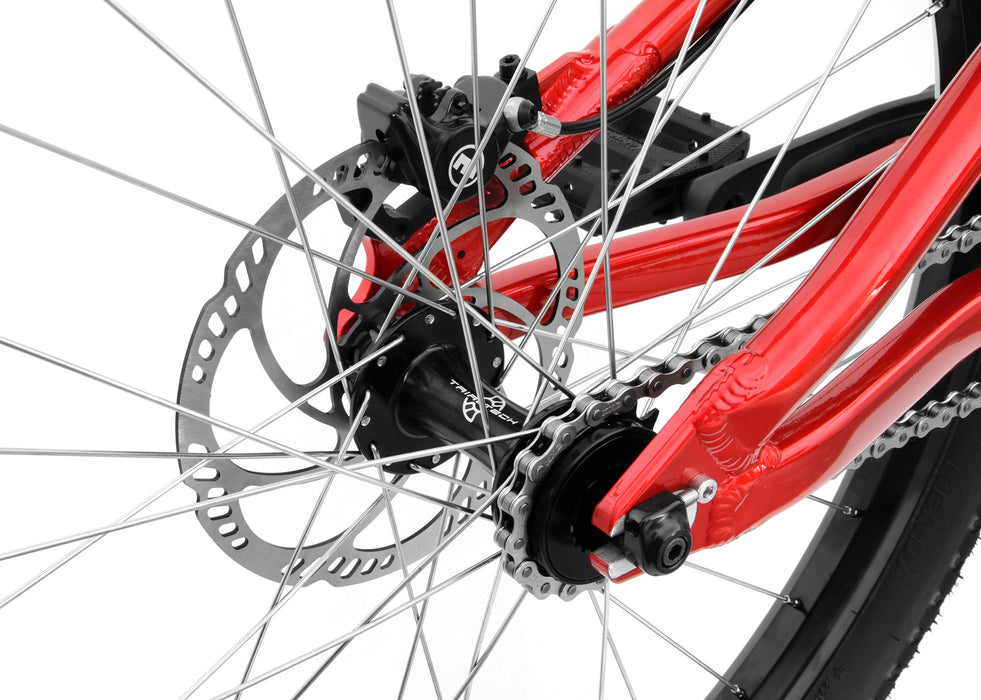

Wheels
- Front Hub: Trialtech Disc, 32h, 100mm wide, Sealed Bearings, Black
- Rear Hub: Trialtech Disc, 32h, 135mm wide, Sealed Bearings, Black
- Chain Tensioner: Flow Chain Tug
- Rims: Inspired Flow, 24", Black
- Spokes: Stainless PG
- Tyres: Kenda K-Rad 24" x 2.5" or Duro 24” x 2.35” (Stock Dependent)
Brakes
- Brake Set: Magura MT4 180mm Disc, Black (Optional Extra) or Magura MT7, HC3 Blade, 180mm Disc, Black (Optional Extra)

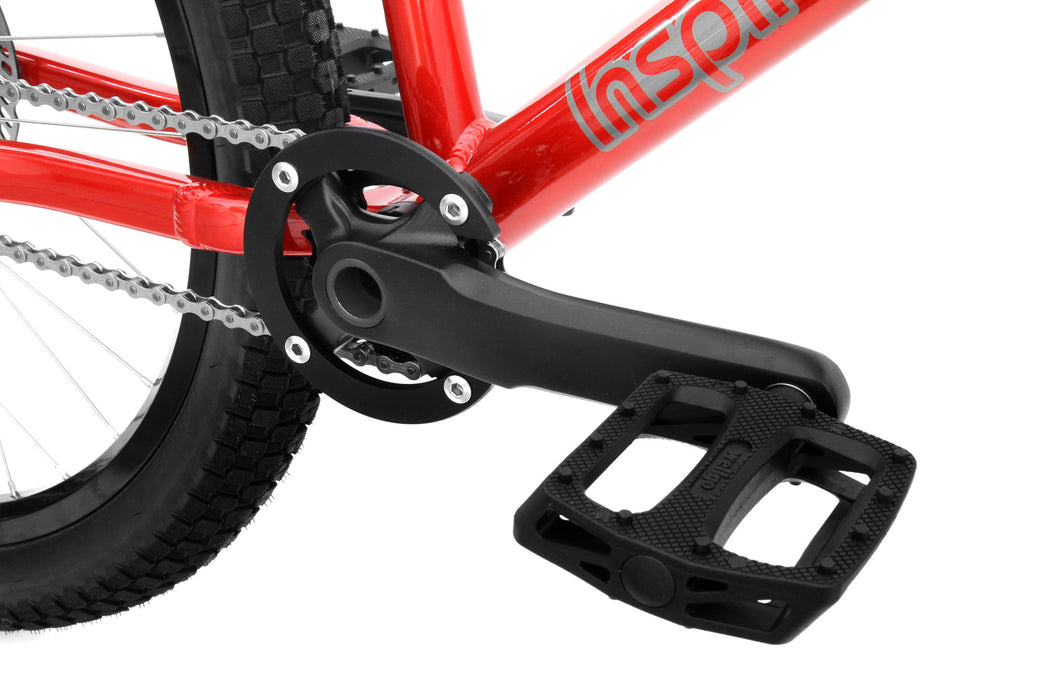

Drivetrain
- Cranks: Trialtech, 170mm, Black
- Front Sprocket: Trialtech, 22T
- Chain: KMC S1
- Freewheel: Trialtech 16T, 36 engagement
- Pedals: Wellgo Nylon Platform, Black (NOT Trialtech Race as shown in photos)
- Bottom Bracket: Sealed Square Taper
- Bashring: 22T Trials
Seating
- Saddle: Inspired Integrated, Black
- Seatpost: Integrated Alloy
- Seat Clamp: Inspired, 31.8mm, Black

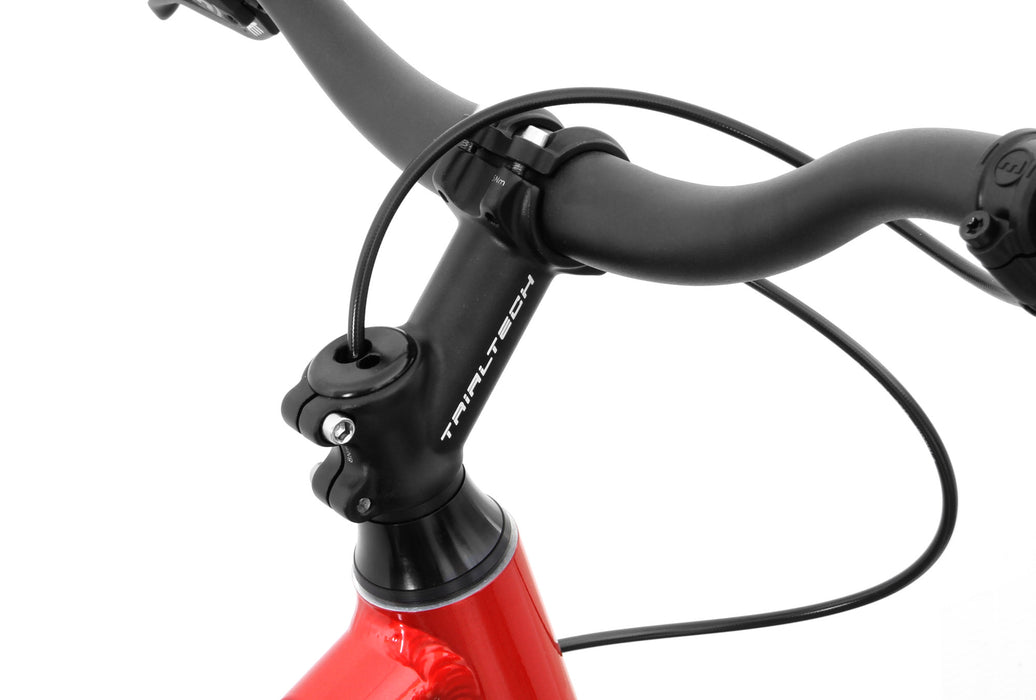

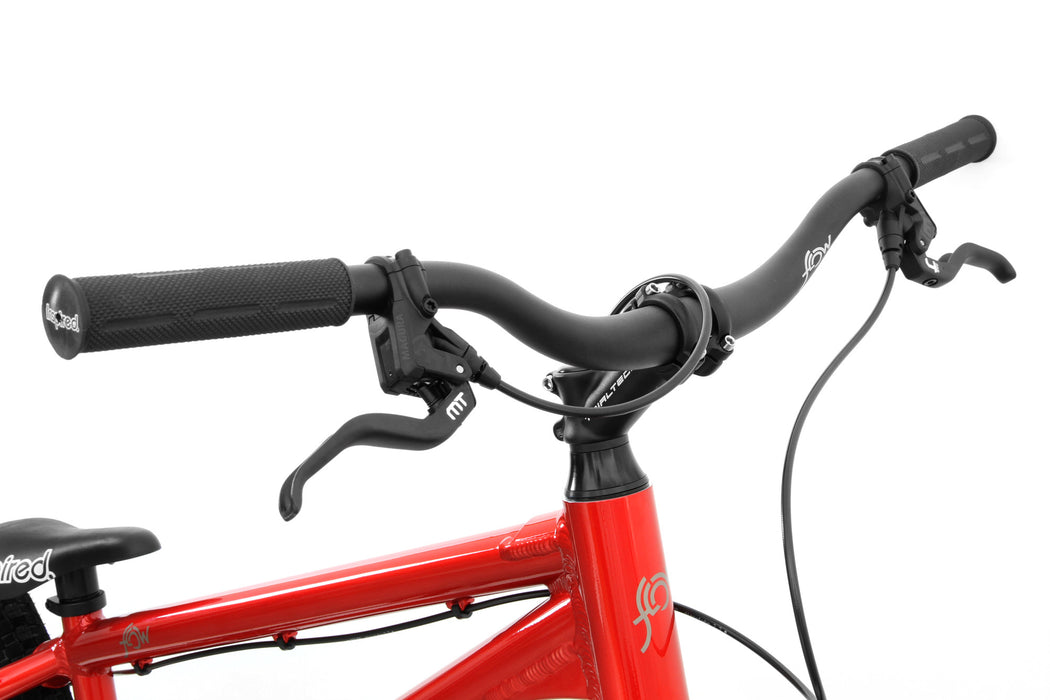

Steering
- Headset: Trialtech, 44mm Internal, 1-1/8", Black
- Stem: Trialtech Forged, 90mm x 35˚, Black
- Grips: Inspired Rubber, Black
- Handlebars: Inspired Flow Medium Riser, Black
Geometry
- Wheelbase: 1010mm
- Chainstay: 375mm
- BB Height: +15mm
- Head Angle: 73˚
Weight
- 11.74kg (including Trialtech Race pedals and Magura MT4 Brakes)
Documentation
Flow Tensioner Instructions (0.4MB)
