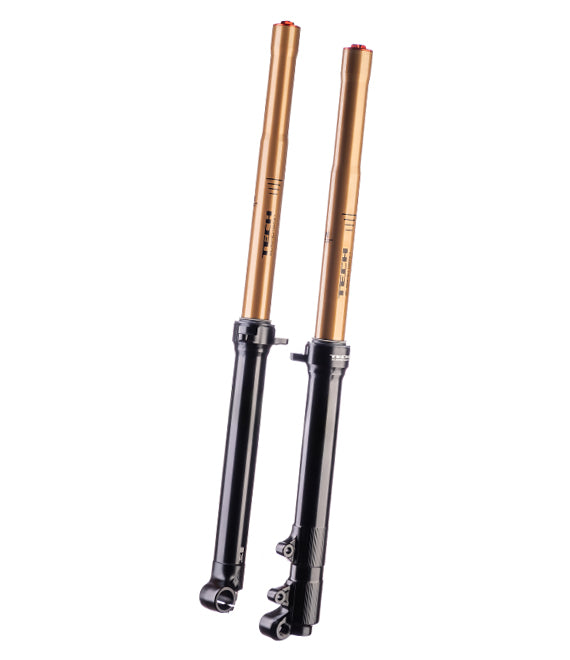

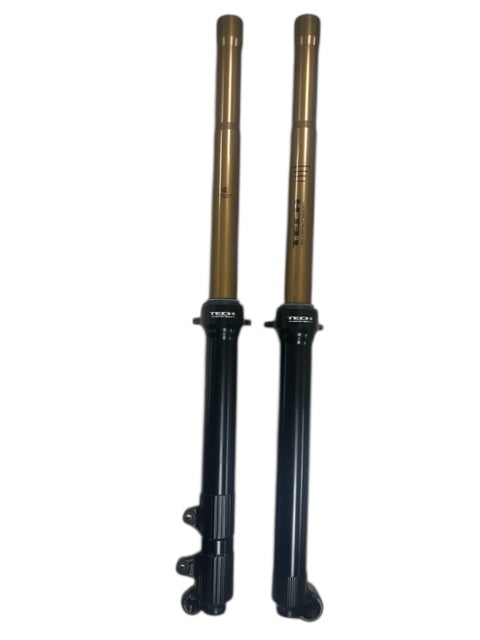

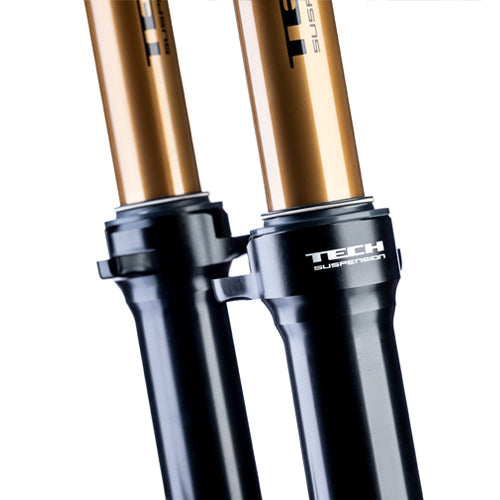

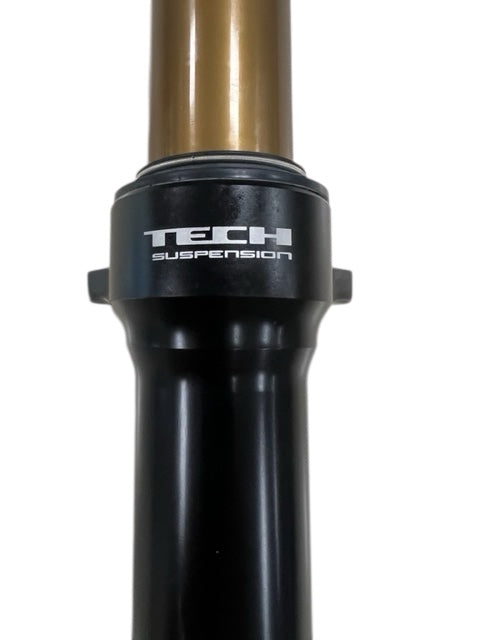

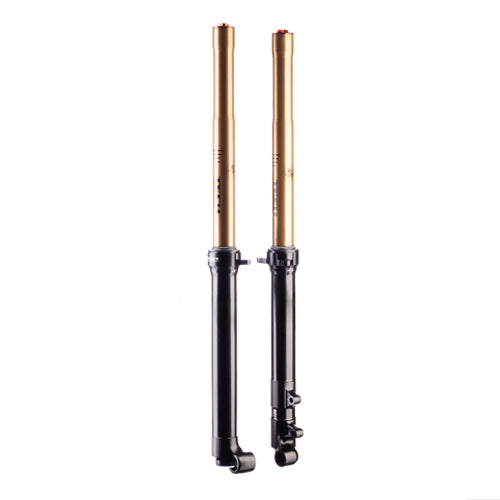

The Kashima Pro SL sets a new standard in trials suspension, weighing just 3.95kg and providing elite performance.
LIGHTWEIGHT DESIGN
- Forged and CNC-machined aluminum outer tubes: redesigned for minimal weight and maximum strength.
- Refined 39mm stanchions: engineered for optimal performance while shaving off extra grams.
- New lightweight springs made from high-tensile steel: requires less material, reducing weight without sacrificing performance.
PERFORMANCE & ADJUSTABILITY
- Lighter front end for enhanced control of the motorcycle.
- Low-friction Kashima® coating for smooth and consistent performance throughout the stroke.
- 165mm of fully-adjustable travel via a wide range of compression, rebound and pre-load adjustment (with shorter option also available).
- End-of-travel hydraulic bumper.
DURABILITY
- Kashima® coating increases stanchion durability and reduces wear on seals and bushings, increasing service intervals.
- Heady duty seals designed for use in extreme conditions.
Technical specifications
GEOMETRY
Length
747mm (short option 740mm)
Travel
165mm (short option 158mm)
SUSPENSION SYSTEM
Damping
Hydraulic cartridge
Spring
Progressive spring

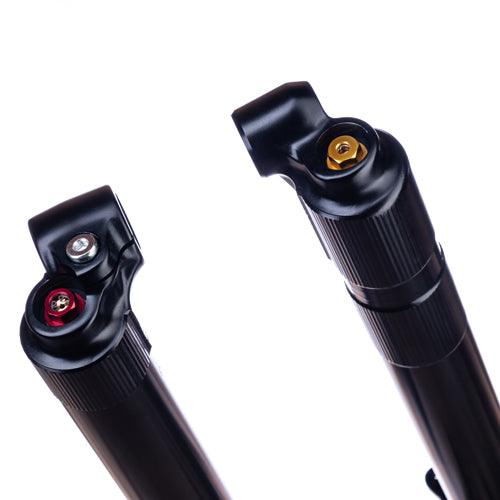

ADJUSTMENTS
Rebound
32 clicks
Compression
5 turns
Preload
1 to 10mm
Bottom out
6 turns

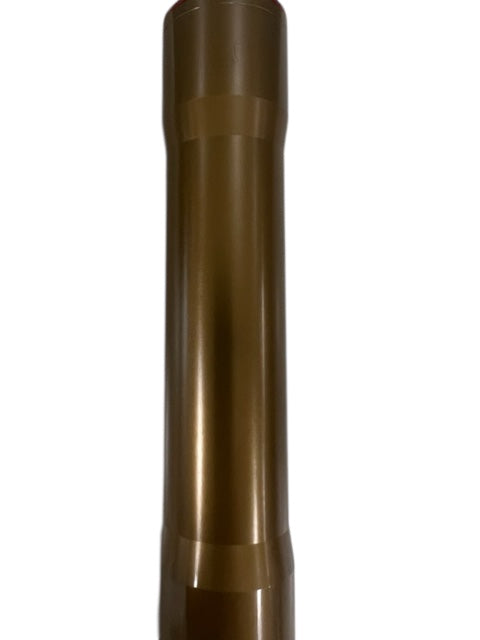

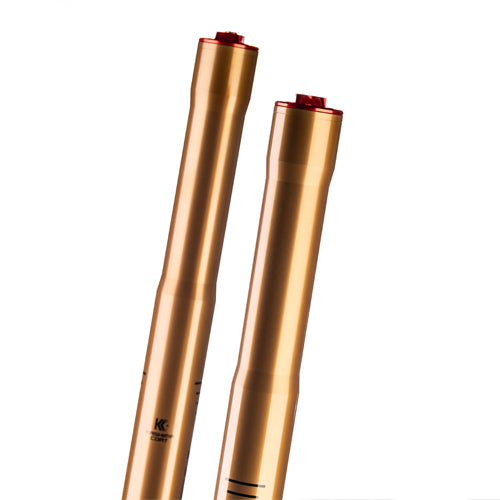

STANCHIONS
Diameter (Ø)
39mm
Material
Aluminium alloy
Treatment
Kashima coating

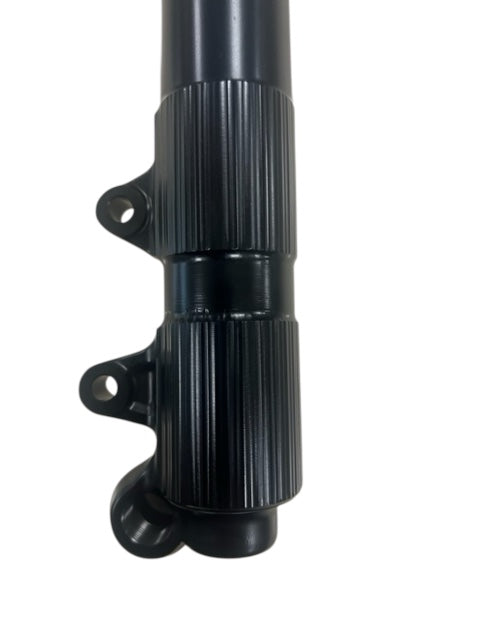

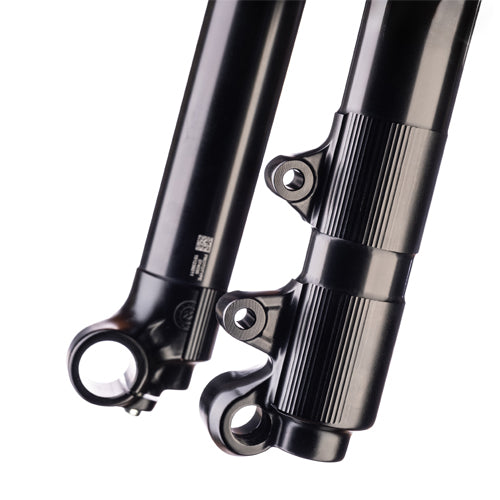

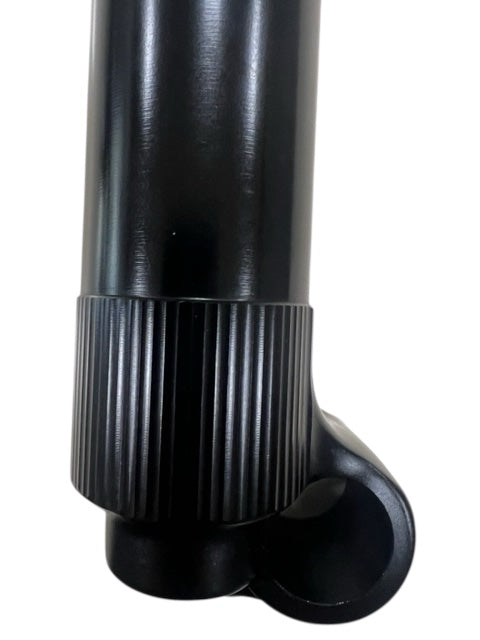

OUTER TUBES
Material
Lightweight forged and CNC'd aluminium
Colour
Black
