Jitsie 20" Varial 1010 Disc/Disc Race


This item is out of stock

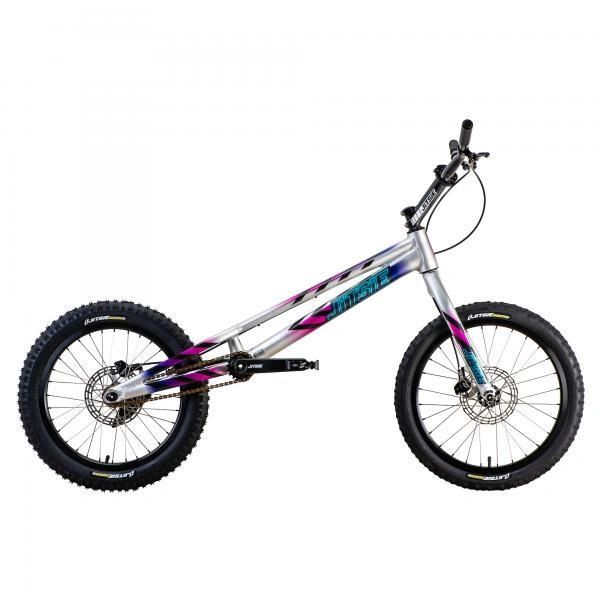

The Jitsie Varial Race bike has received major updates for 2023 and takes innovation to the next level in trials. Highlights include the completely new aluminium frame with triple butted hydroformed tubes, innovative rear thru axle setup with integrated snail cams and the new Race cranks. The unity of quality manufacturing and functional minimalist design result in a performant and durable competition bike that makes it the choice for any serious trials rider.

Frame kit:
* frame: Jitsie Varial Race 1010mm disc tapered with thru axle 12mm
* fork: Jitsie Varial Race 370mm disc tapered 1.1/8" - 1.4" with 10mm thru axle

Features frame:
* hydroformed triple butted tubes from premium 6061-T6 aluminium to save weight and increase stiffness
* competition orientated design with a focus on performance and durability
* 110mm high CNC machined head tube designed for a semi-integrated tapered headset
* CNC machined threaded 68mm wide bottom bracket shell
* innovative tapered seat tube increases stiffness around the bottom bracket area
* CNC machined post mount rear disc brake support for 162mm rear brake disc Race includes integrated rear dropout for increased strength
* CNC machined custom dropouts distanced 116mm apart come supplied with Jitsie exclusive 12mm rear spindle system
* carbon rear disc protector mounted directly to the frame
* sandblasted silver finish with Jitsie Race graphics

* wheelbase: 1010mm
* chainstay length: 350mm
* bottom bracket height: 80mm
* head tube: 110mm
* head tube angle: 71.5°
(geometry based on Jitsie Varial Race tapered fork 370mm and +-45mm offset)

* hub front / rear: Jitsie 100mm 28h disc Race black / Jitsie 116mm 32h disc Race black
* rim front / rear: Jitsie 20" 32mm 28h black / Jitsie 19" 48mm 32h black
* spokes / nipples: Jitsie inox 1.8mm silver / aluminium black
* tyre front / rear: Jitsie Reverz 20"x2.0 / Jitsie Reverz 19"x2.6
* tubes: Jitsie 20" light 0.9mm

* headset: Jitsie semi-integrated tapered 1.1/8" - 1.4"
* headset spacer: Jitsie 5mm carbon Race
* stem: Jitsie sloped 150mm 35° stem with Jitsie stem cap Race black
* handlebar: Jitsie 31.8mm 730x110mm carbon with Jitsie handlebar pad
* grips: foam
* front brake: Jitsie disc brake master cylinder Race / Jitsie brake hose / Jitsie disc brake caliper Race with Jitsie brake pads Race / Jitsie brake disc 160mm Race
* rear brake: Jitsie disc brake master cylinder Race / Jitsie brake hose / Jitsie disc brake caliper Race with Jitsie brake pads Race / Jitsie brake disc 162mm Race / Jitsie carbon brake disc protector

* bottom bracket: Jitsie ISIS 118mm
* cranks: Jitsie Race 160mm black
* crank bolts: Jitsie aluminium Race black
* pedals: Jitsie simple cage black
* freewheel: Jitsie 108.9 18t
* protector: Jitsie bash plate black
* sprocket: Jitsie steel 12t
* chain: KMC K1SL gold
* chain tensioner: Jitsie 12mm thru axle with integrated snail cams

* 7.9kg including pedals and handlebar pad

* Jitsie and Off>Road>Action reserve the right to partially modify the components of the bike according to available stocks and in harmony with the original specifications. The pictures shown are non-contractual.
